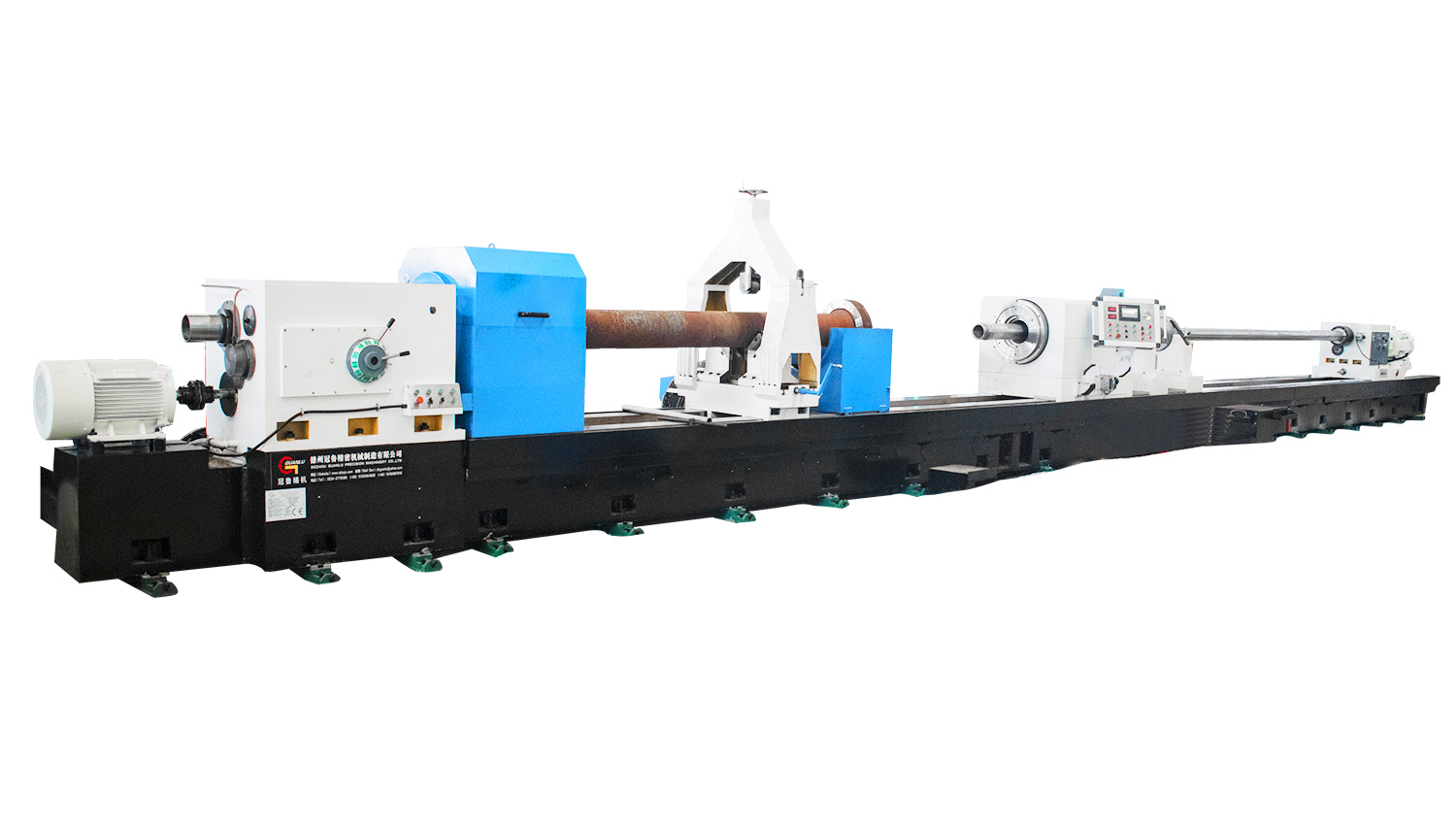

■The TSK2150 deep holes borehole machine is for big size round job deep hole drilling process.

■According to the job length,thereare two deep hole processing way.For short job,oil supply by oil pressure head and tight by hydraulic. For long job,oil supply by boring bar tail,four jaw chuck clamping.

■Oil pressure head is new designed shaft structure,which has big loading capacity,rotating accuracy is higher.

■Machine bed adopts double rectangle guide rail,width is 800mm,big loading capacity.

■The machine has function of drilling,boring,counter boring,pull boring,trepaning and burnishing by using different cutting tools.

■If the job is solid bar,suggest to use trepaning function.

■The machine is very big and heavy duty.
