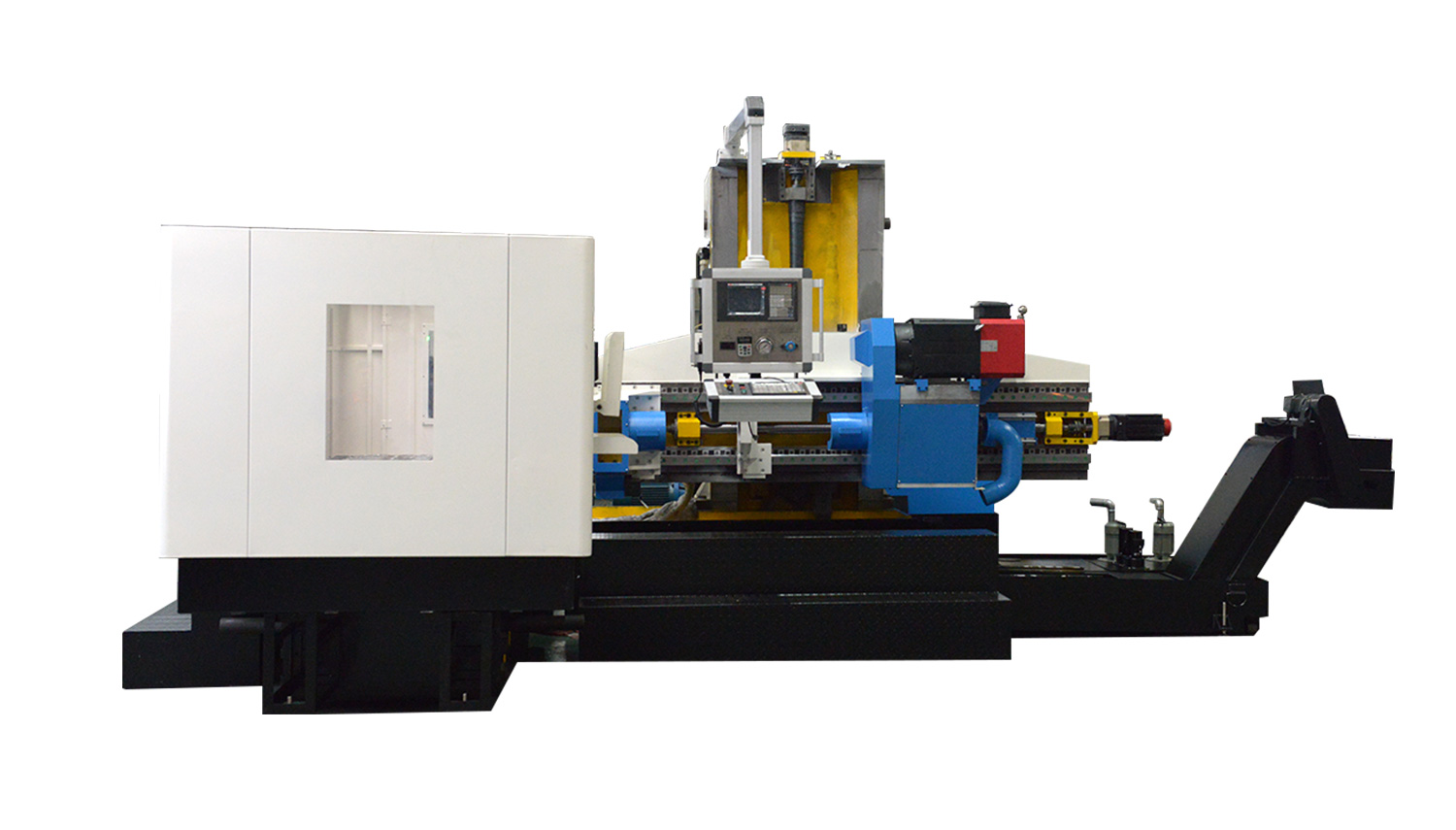

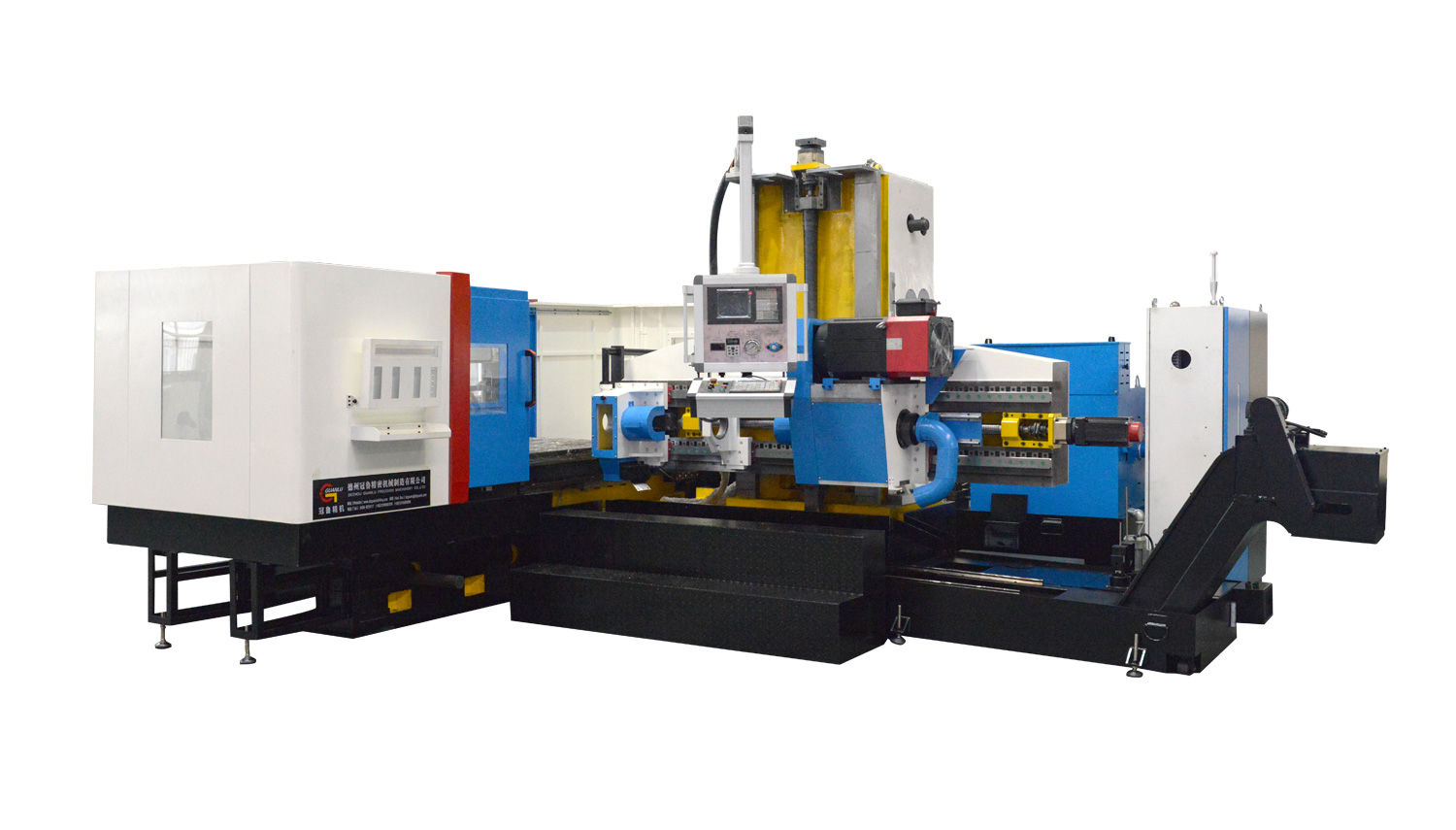

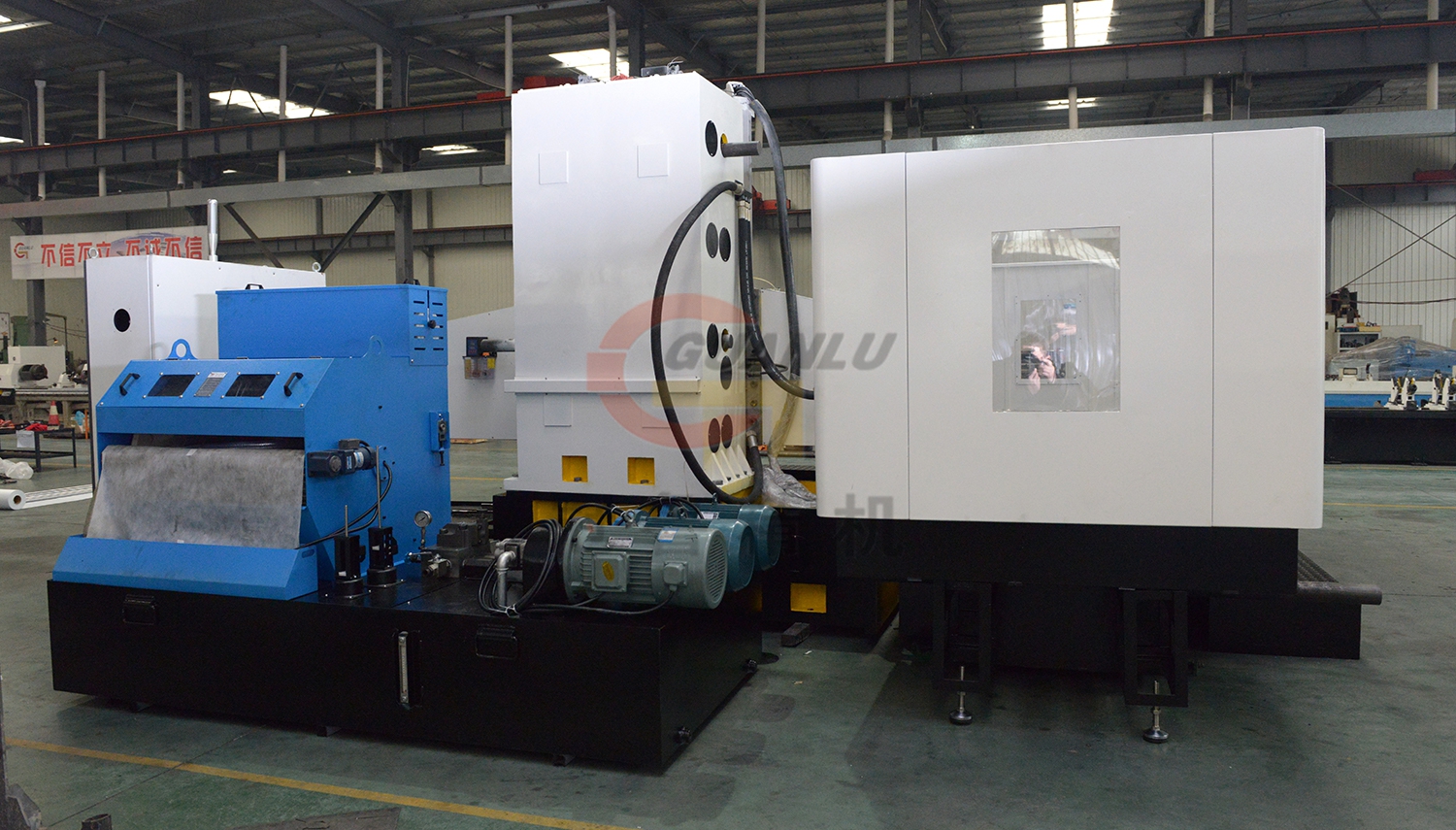

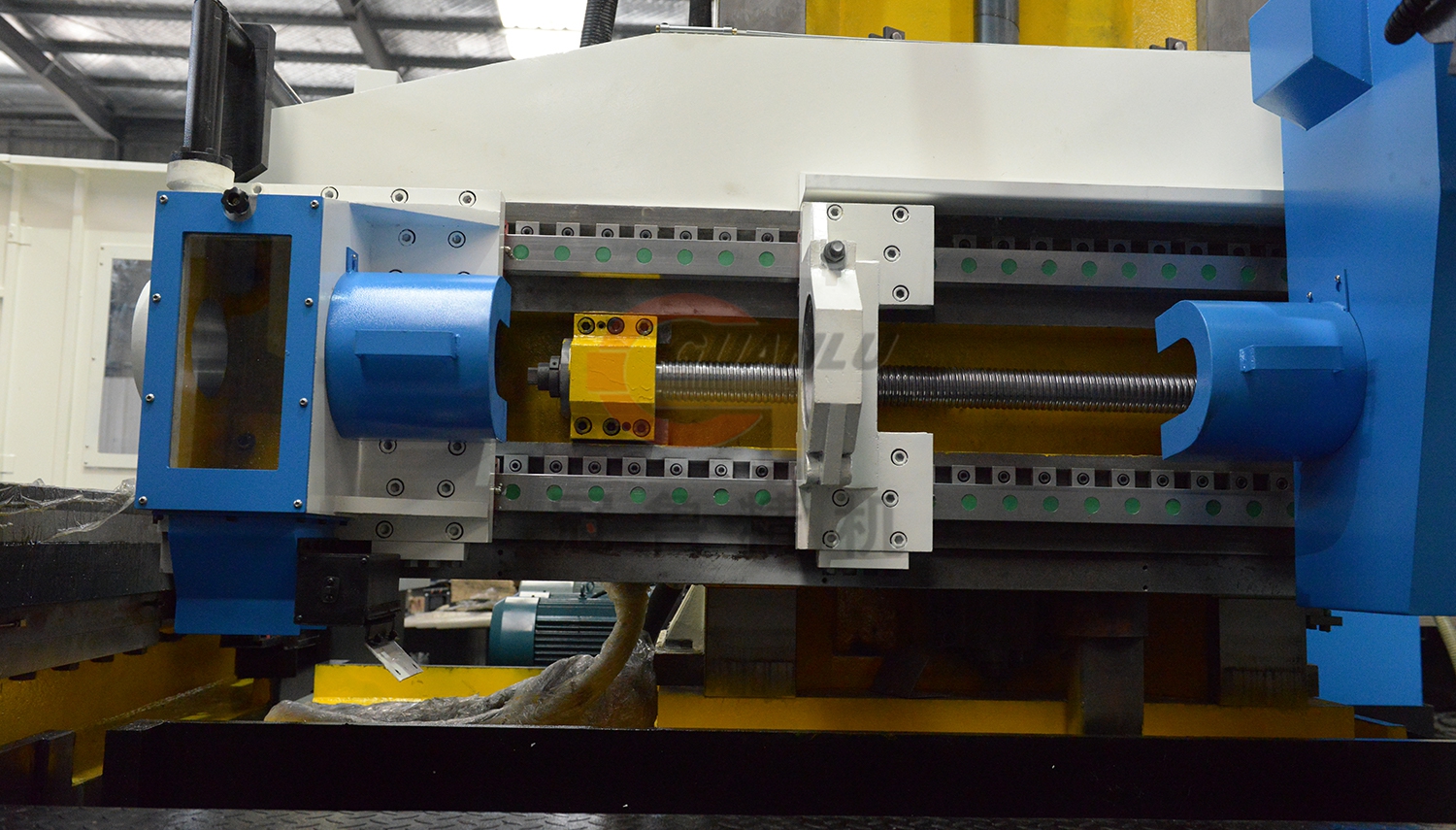

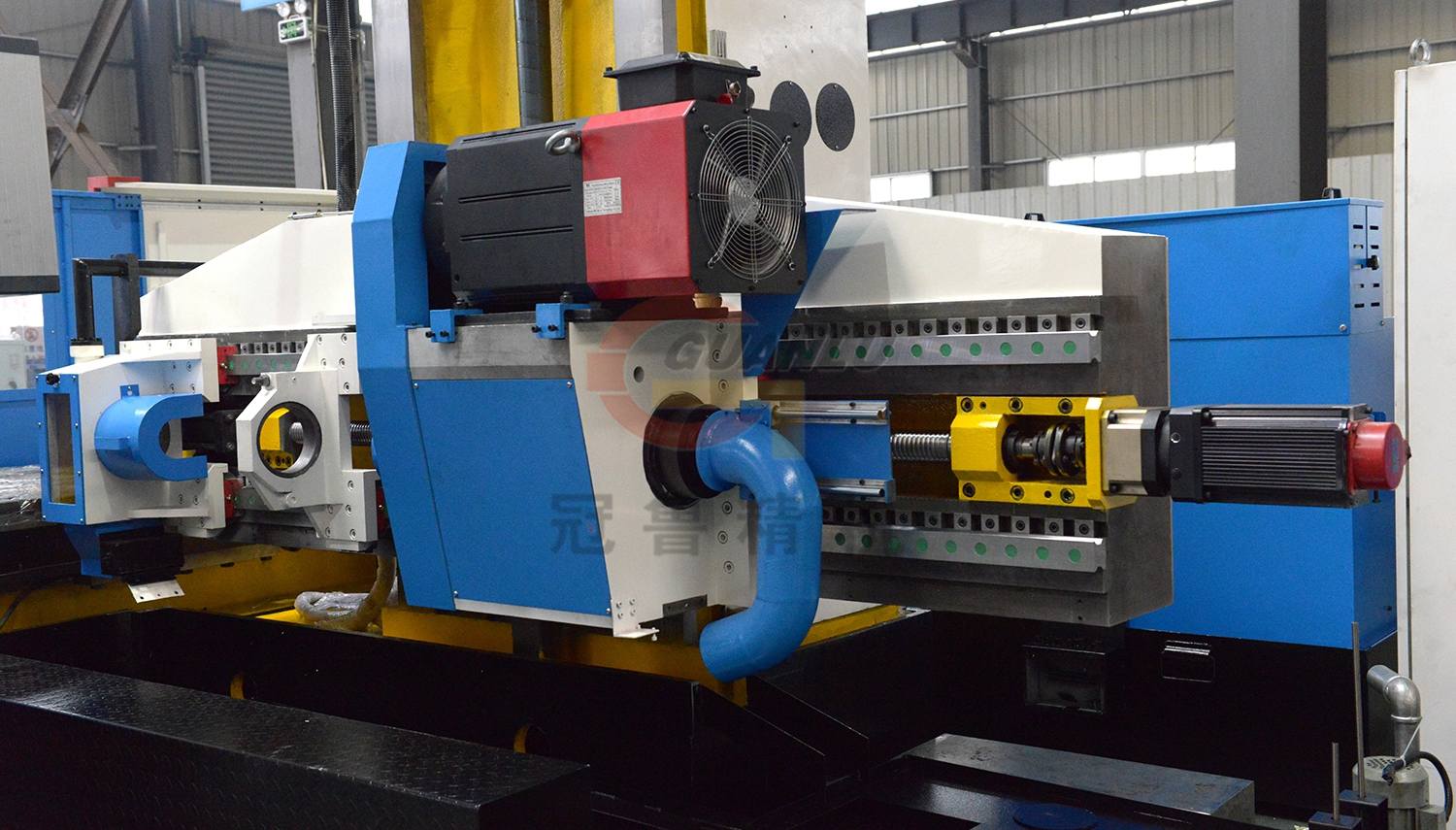

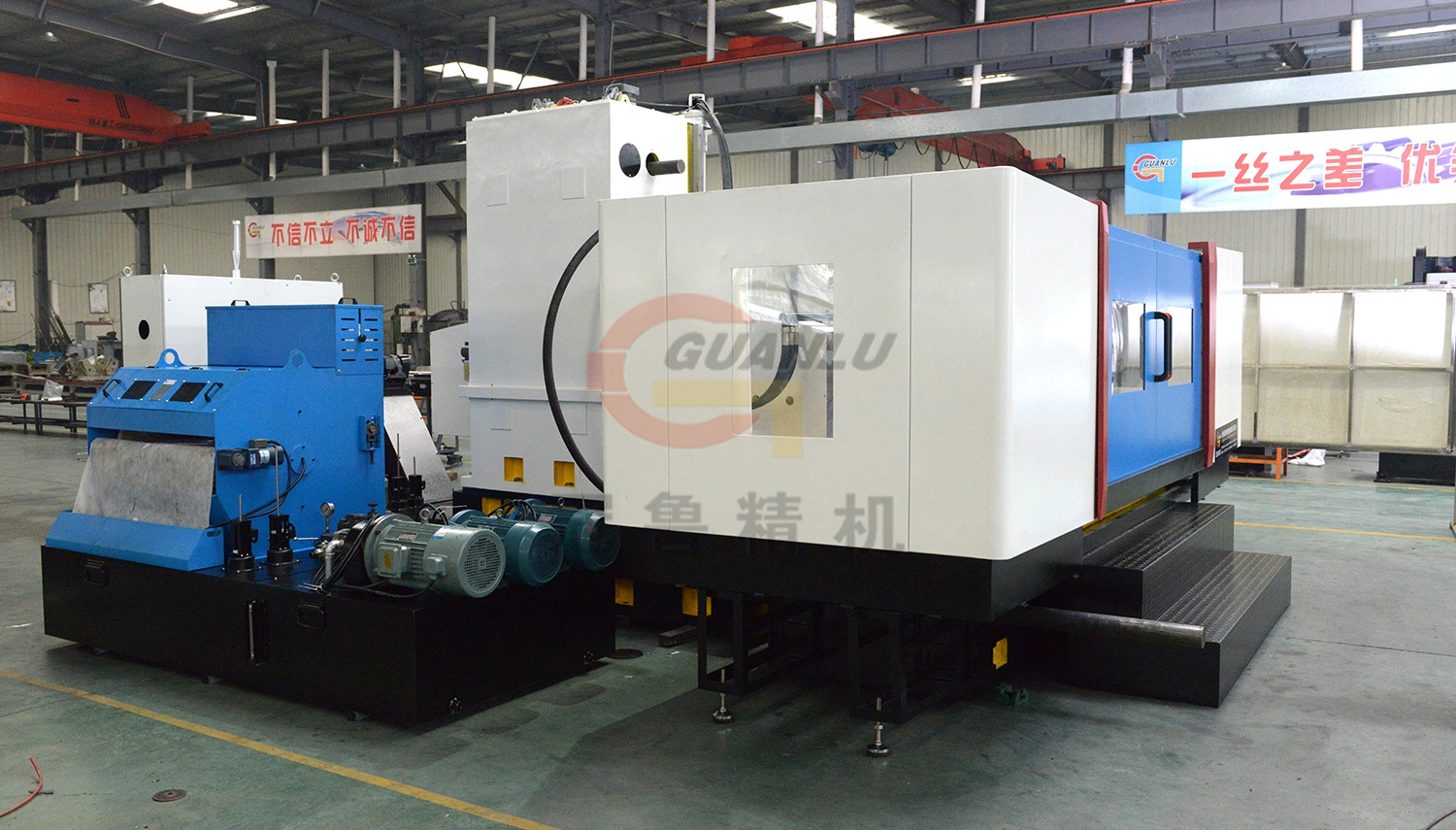

Our company design the combined three axis deep hole drilling machine,which could adopt both gundrilling and BTA drilling system,which will meet for some company’s widely deep hole drilling demand.
Machine brief:
Gundrilling method:Gundrilling and BTA drilling
Gundrilling range:φ10-φ30mm
BTA drilling range:φ25-φ80mm
Deep hole drilling depth：500mm/1000mm/1500mm/2000mm/2500mm/3000mm
CNC controller:SIEMENS/FANUC/KND/GSK
X axis：CNC control and traval stroke :500mm/1000mm/1500mm/2000mm/2500mm/3000mm
Y axis：CNC control,traval stroke 1000mm；
Z axis：CNC control,traval stroke 1000mm；
Tworking table：Dimension 1800mm×1200 mm；
Guide rest：Gundrilling and BTA drilling share together.

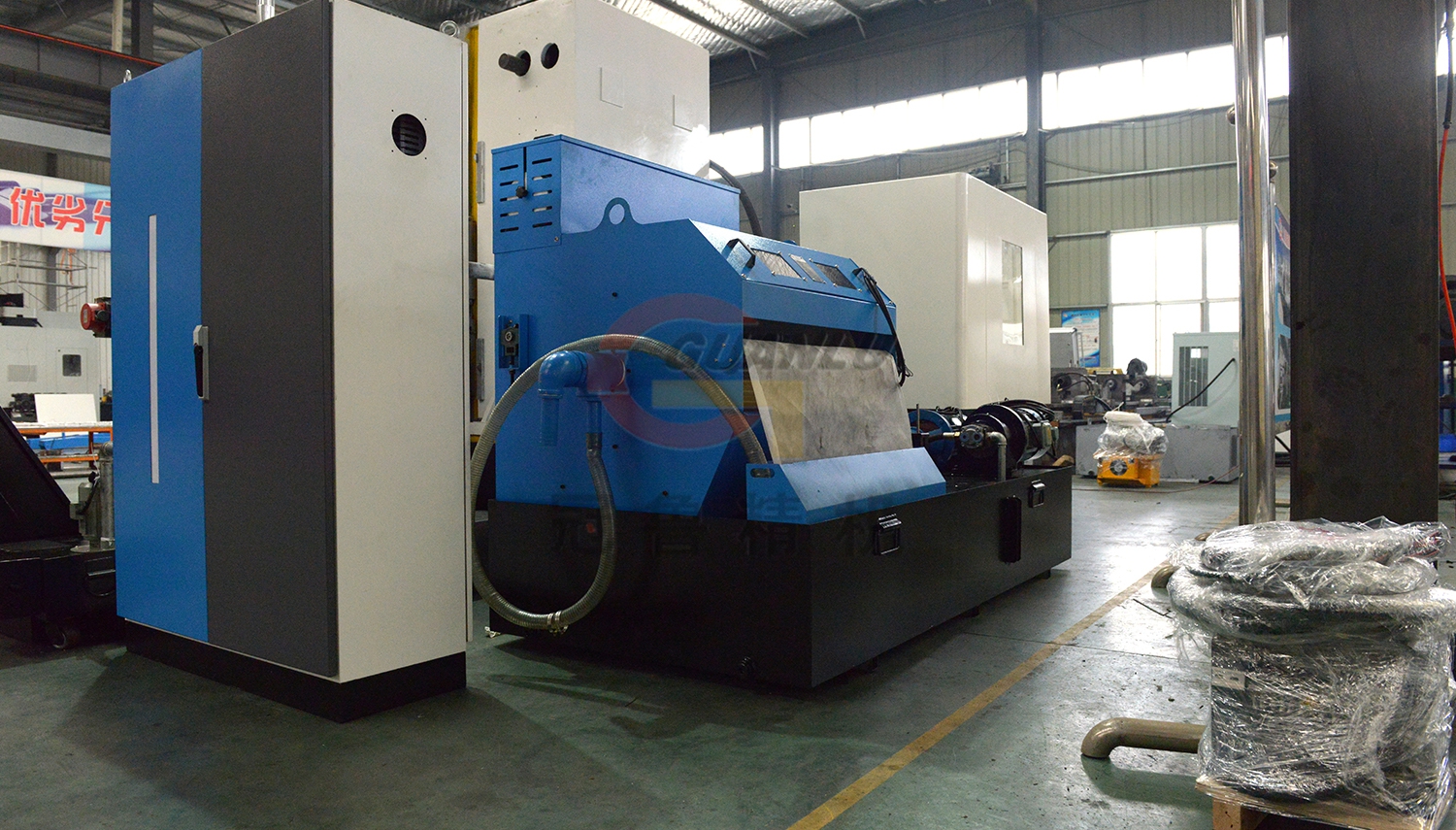

Technical specification | Parameters | ||||
Single spindle | Double spindle | ||||
Working capacity | Drill hole diameter | Gundrilling | 8mm-30mm | 4mm-30mm | |
BTA drilling | 25mm-60mm | 25mm-80mm | |||
Drilling depth | 1000mm-3000mm | ||||
Job length | 1000mm-3000mm | ||||
Max job OD | 250mm | ||||
Max job weight | 2000mm | ||||
Machine characters | Drill box | Ratating speed | 200-2000rpm/min | Gundrilling 200-5000 BTA:200-1000 | |
Main motor power | 18.5kw | Gundrilling:7.5kw BTA:22kw | |||
Z axis | Infeed speed range | 5-500mm/min | |||
Rapid movement speed | 2000mm/min | ||||
Motor torque | 15Nm | ||||
others | Hole L-D ratio | 100:1 | |||
Machine general power | 45kw | 55kw | |||
Coolant system | Max.Pressure | 10 | 10 | ||
Max.Flow | 200 | 300 | |||
Filtering accuracy | 20 | 40 | |||
