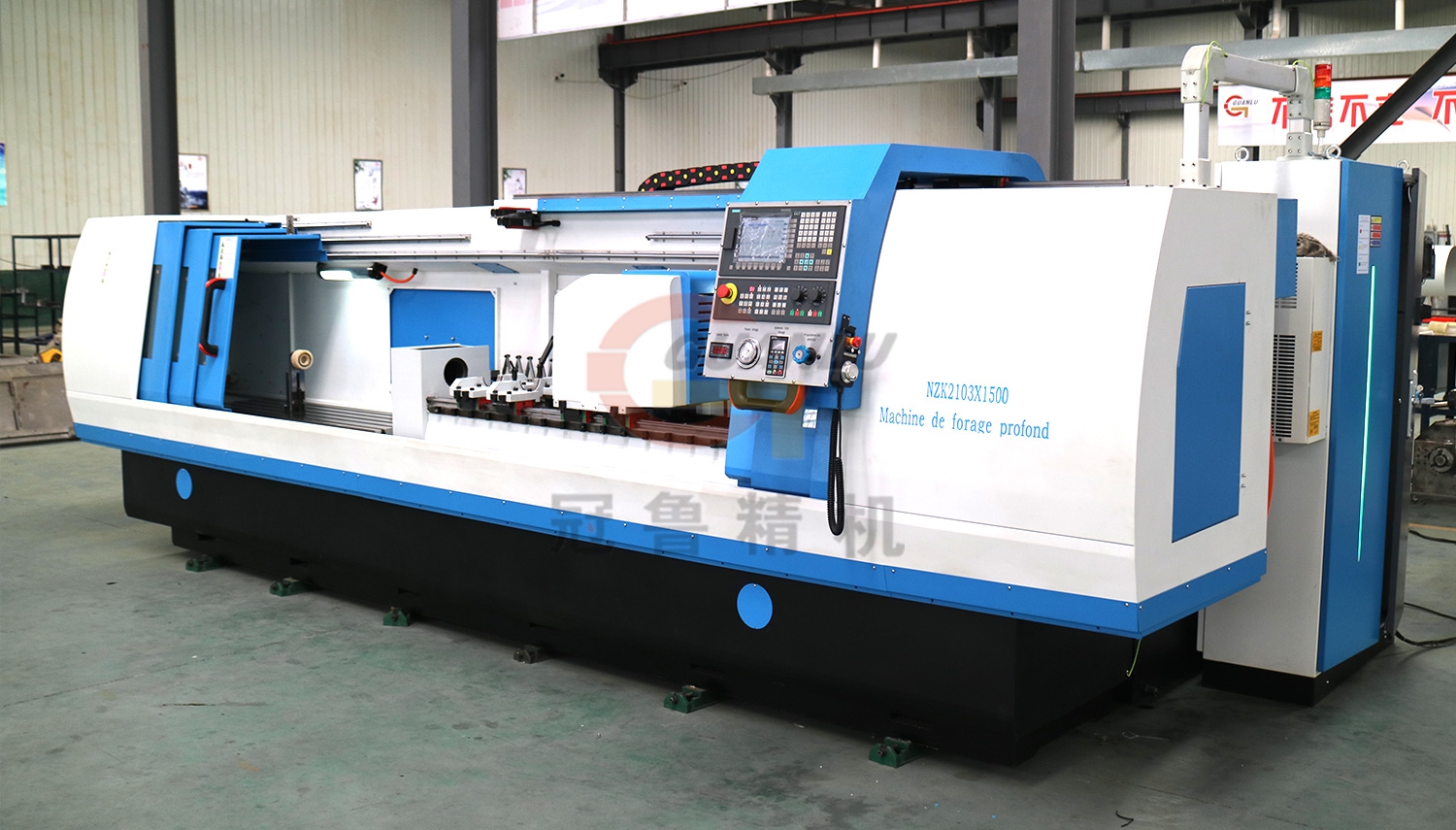

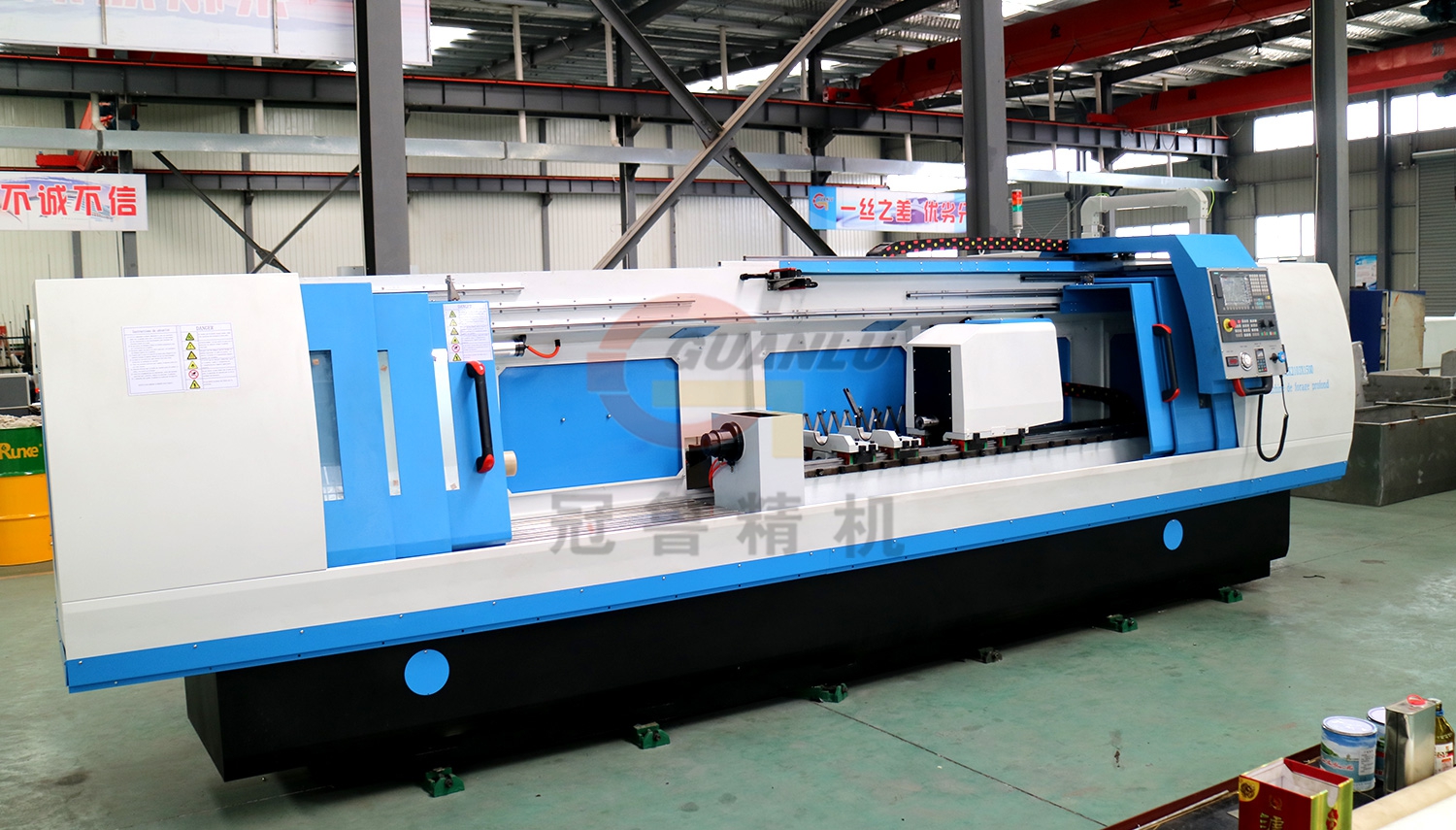

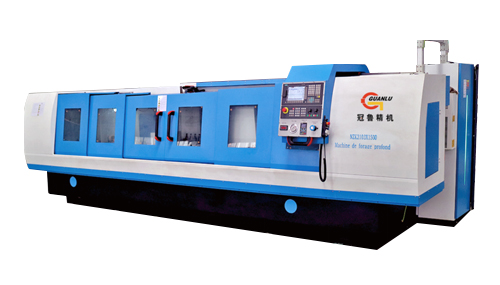

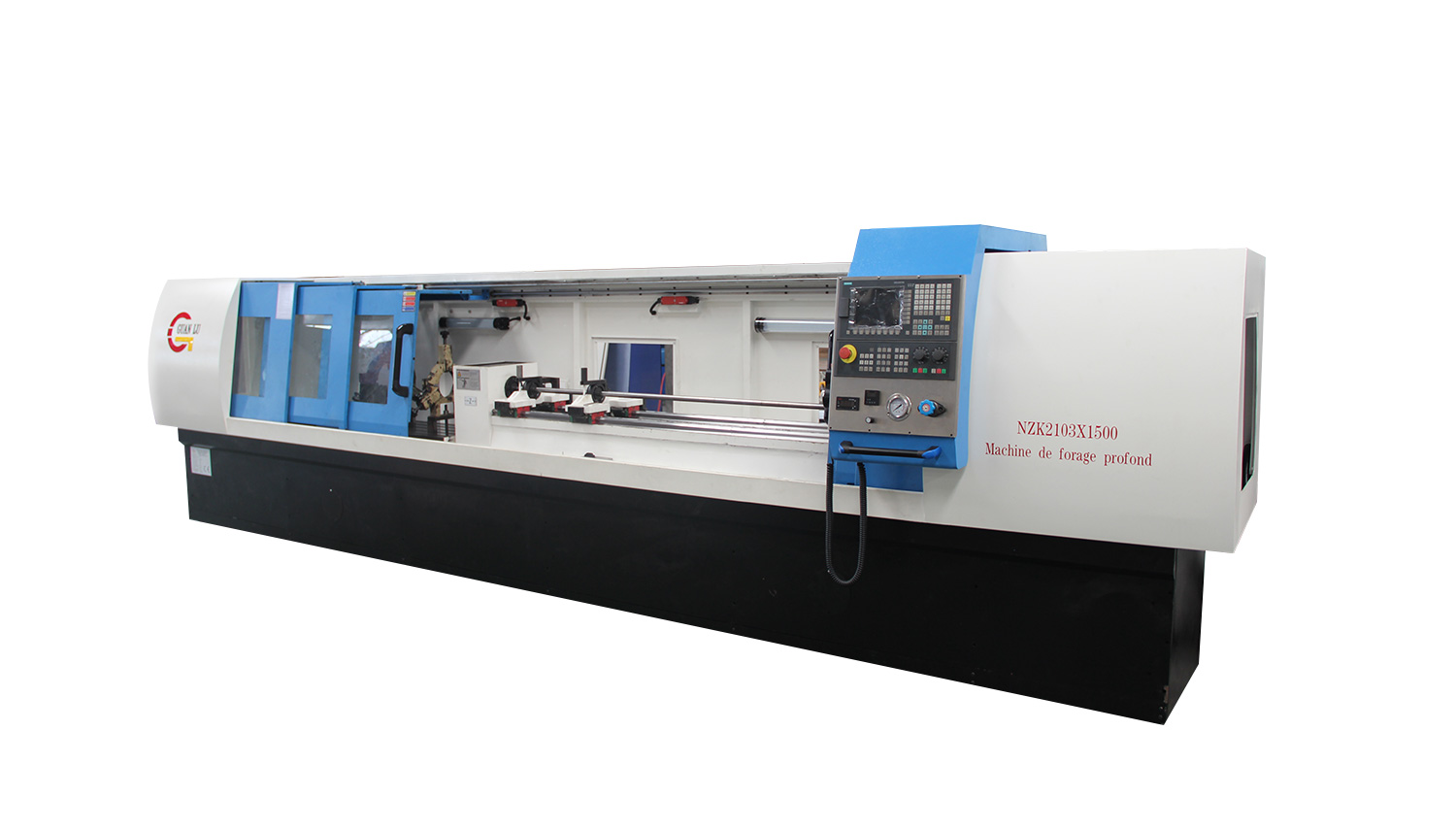

Machine brief:
■This model is the most popular model.
■Gun drilling range：Φ4～Φ20mm/Φ4～Φ30mm/Φ6～Φ40mm
■Gun drilling maximum depth：500/1000/1500/2000/2500 mm
■Hole maximum length and diameter ratio: 100:1
■OD job range: ：Φ15～Φ100mm
■Gun drilling method:single spindle,suitable for shaft or round bar job.
■Headstock:drive the job rotating,consistant speed 117r/min
■Guide rail adopts linear guide rail
■CNC controller system: SIEMENS/FANUC/GSK
Machine parameters：
Model | ZKS2102 series | ZSk2103 Series | ZSK2104 Series | |
Single spindle | Single spindle | Single spindle | ||
Mainly parameters | Hole drilling diameter range | 4mm-20mm | 4mm-30mm | 6mm-40mm |
Max.gun drilling length | 500/1000/1500/2000/2500mm | |||
Main spindle quantity | 1 | |||
Main spindle space | 140mm | |||
Drill box | Main motor power | 3.7kw | 5.5kw | 7.5kw |
Maxiumum rotating speed | 5000r/min | 3500r/min | ||
Headstock | power | 1.5w | ||
Rotating speed | 120r/min | |||
Tool infeeding | Infeed speed range | 5-500mm/min | ||
Rapid speed | 4m/min | |||
Infeed motor torque | 7.5Nm | 10Nm | ||
Coolant system | Maxiumum flow | 100L/min | ||
Maximum pressure | 10Mpa | 8Mpa | ||
Filtering accuracy | 20um | |||
Processing accuracy | Hole size accuracy | IT7-IT10 | ||
Hole roughness | Ra0.8um-Ra3.2um | |||
Hole deviation | Job fixed: 1mm/1000mm,Job ratating :0.5mm/1000mm. | |||
General power | Machine general power | 20.5kw | 22kw | 25kw |
