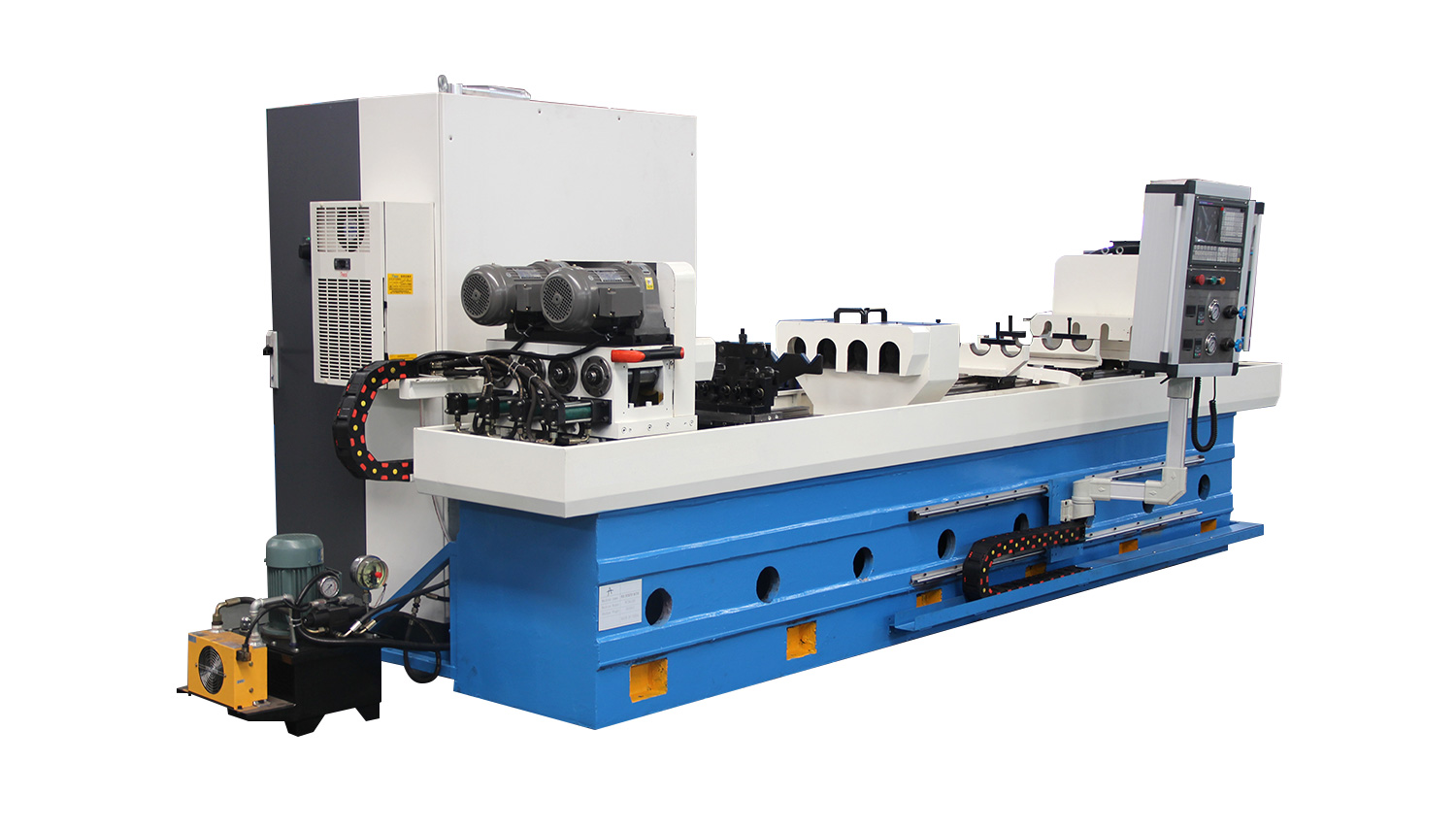

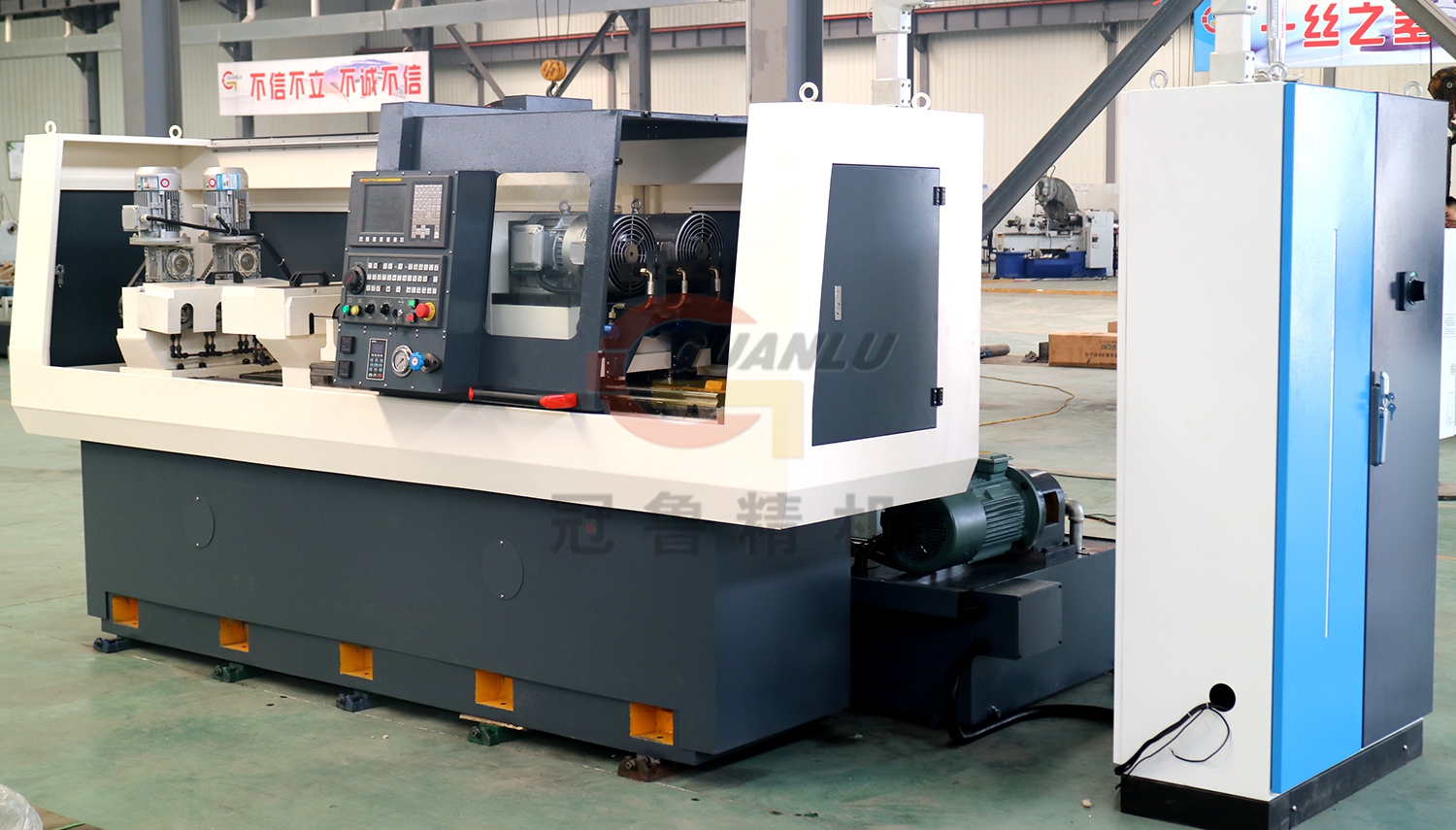

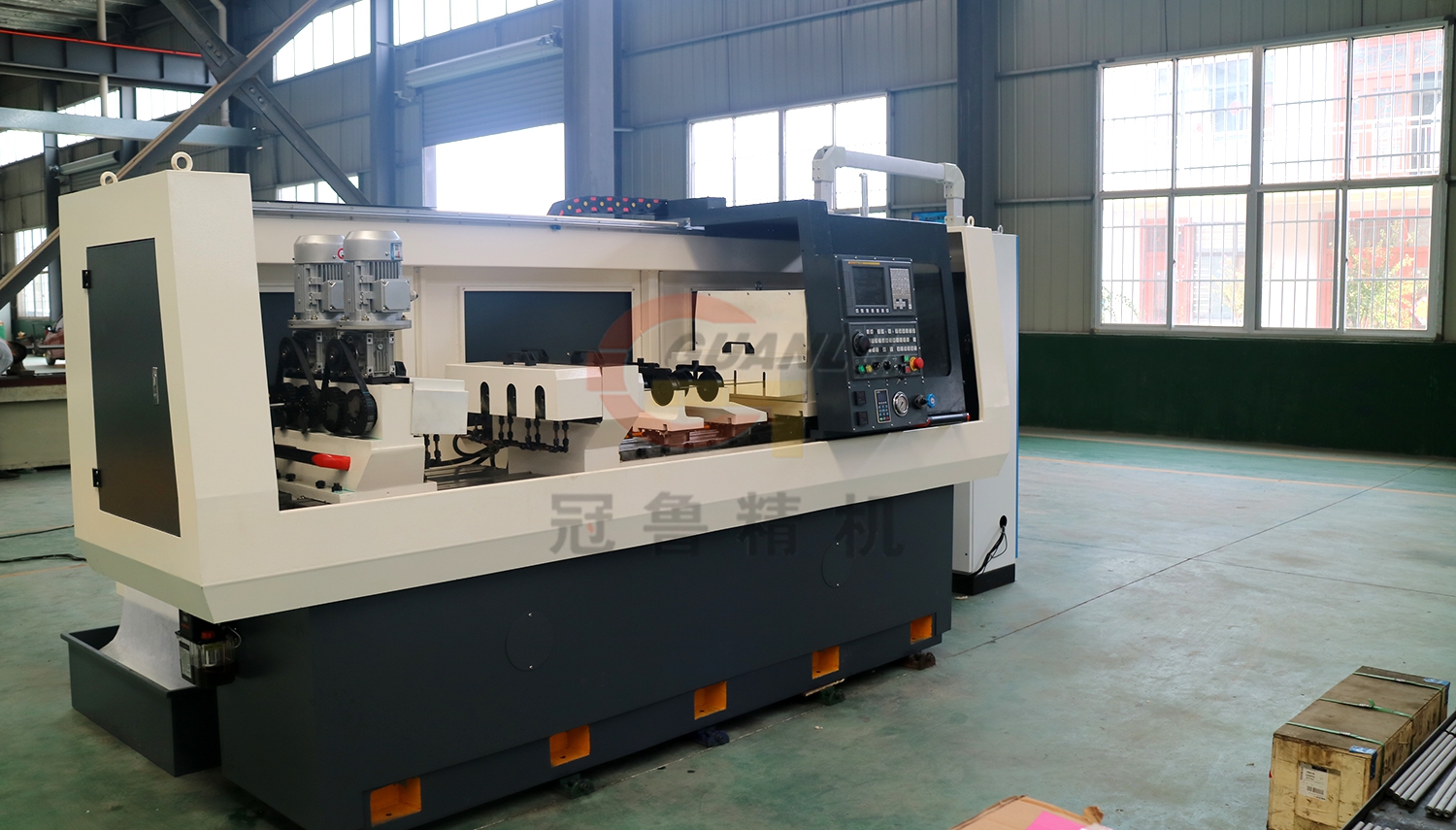

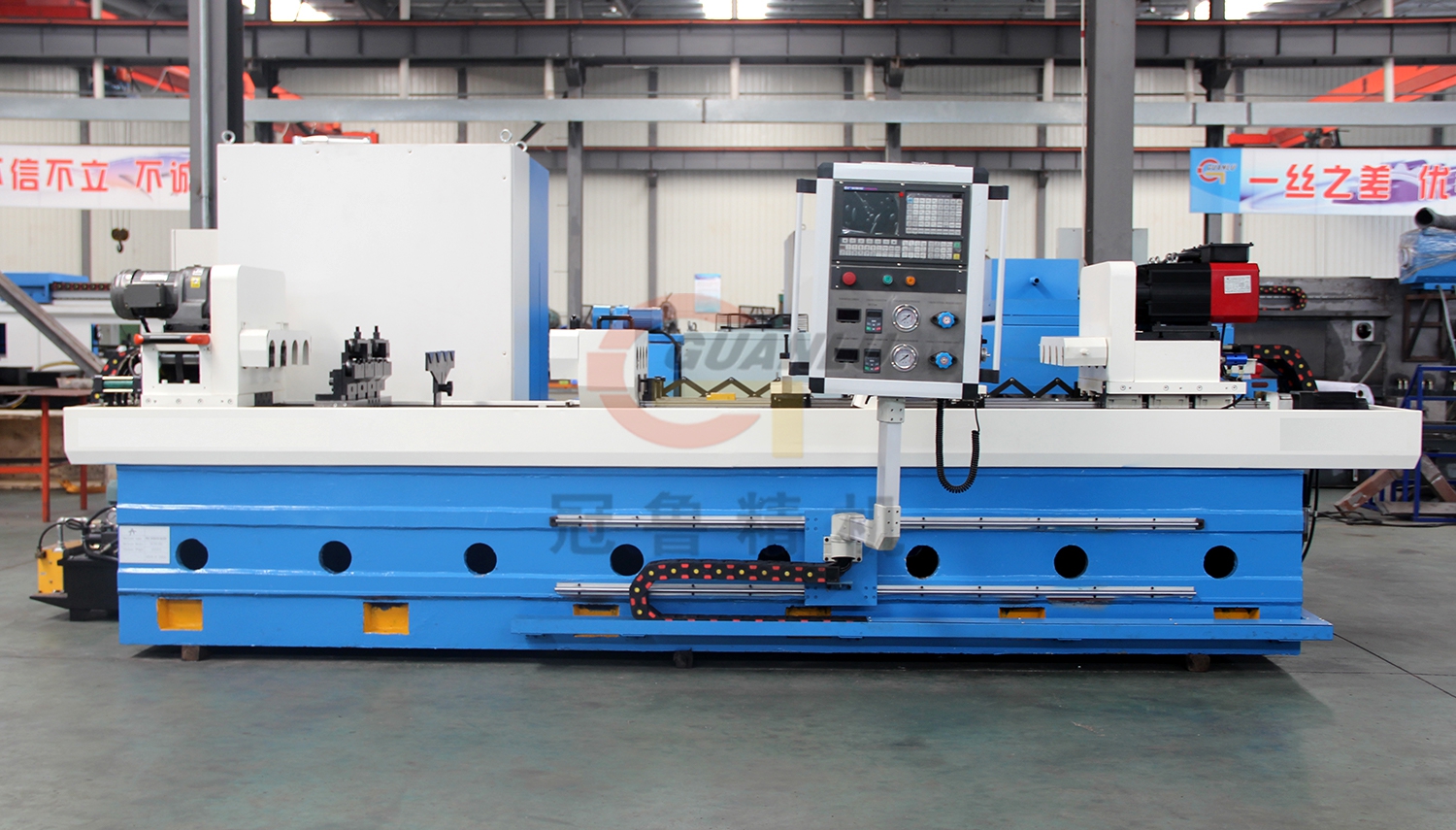

Machine brief:
■Gun drill range：Φ4～Φ20mm/Φ4～Φ30mm/Φ6～Φ40mm
■Gun drill maximum depth：500/1000/1500/2000/2500 mm
■Hole maximum length and diameter ratio: 100:1
■OD job range: ：Φ15～Φ100mm
■Gun drill method:four spindle,suitable for shaft or round bar job. Headstock:drive the job rotating,consistant speed 117r/min
■Guide rail :adopts linear guide rail
■CNC controller system: SIEMENS/FANUC/GSK
Machine parameters：
Model | ZKS2102 series | |
Double spindle | ||
Mainly parameters | Hole drilling diameter range | 4mm-20mm |
Max.gun drilling length | 500/1000/1500/2000/2500mm | |
Main spindle quantity | 4 | |
Main spindle space | 140mm | |
Drill box | Main motor power | 7.5kwx2 |
Maxiumum rotating speed | 5000r/min | |
Headstock | power | 1.5wx2 |
Rotating speed | 120r/min | |
Tool infeeding | Infeed speed range | 5-500mm/min |
Rapid speed | 4m/min | |
Infeed motor torque | 10Nm | |
Coolant system | Maxiumum flow | 200L/min |
Maximum pressure | 10Mpa | |
Filtering accuracy | 20um | |
Processing accuracy | Hole size accuracy | IT7-IT10 |
Hole roughness | Ra0.8um-Ra3.2um | |
Hole deviation | Job fixed:1mm/1000mm, Job rotating:0.5mm/1000mm. | |
General power | Machine general power | 42kw |
