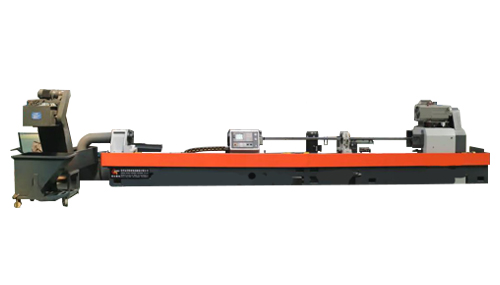

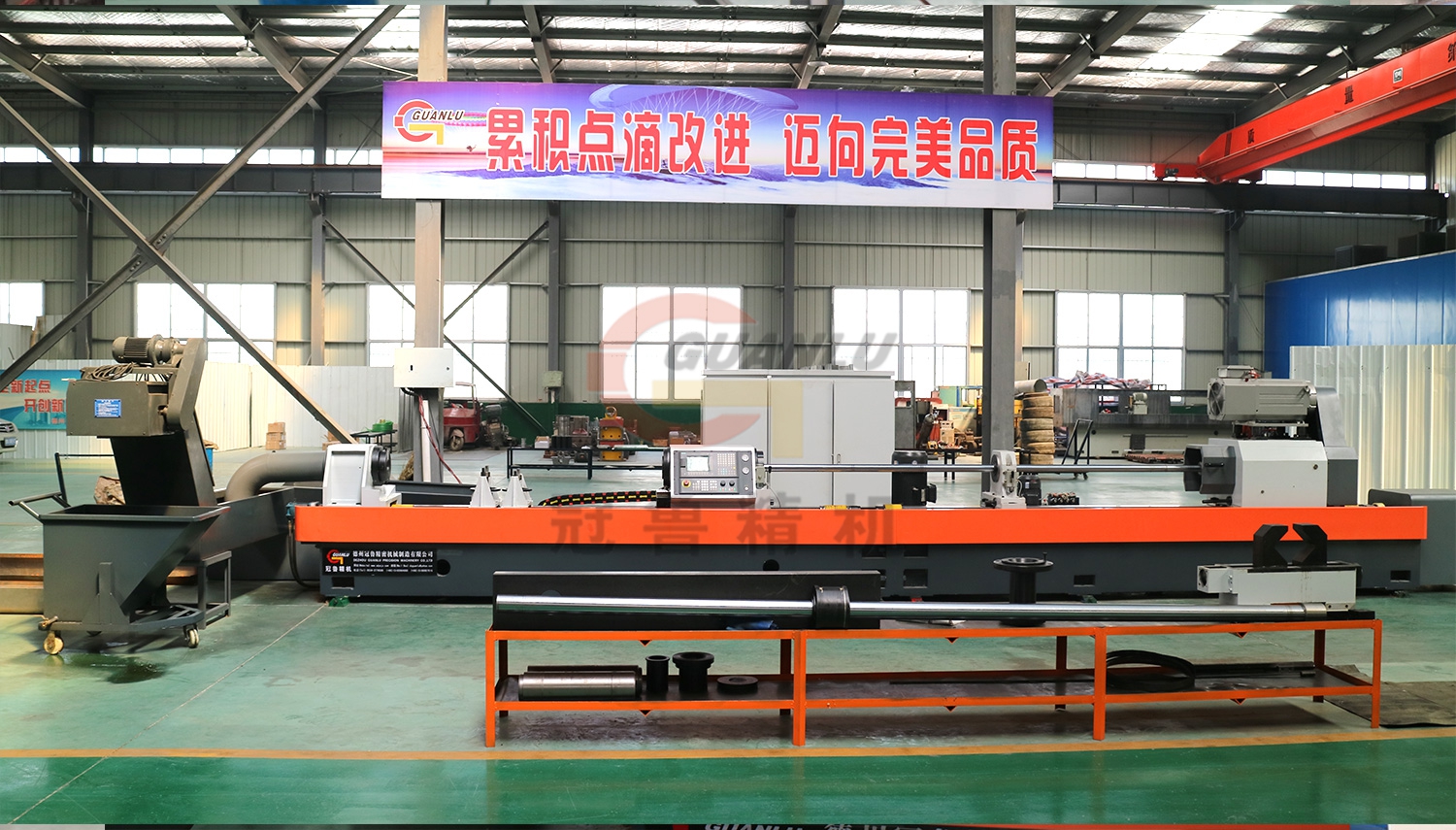

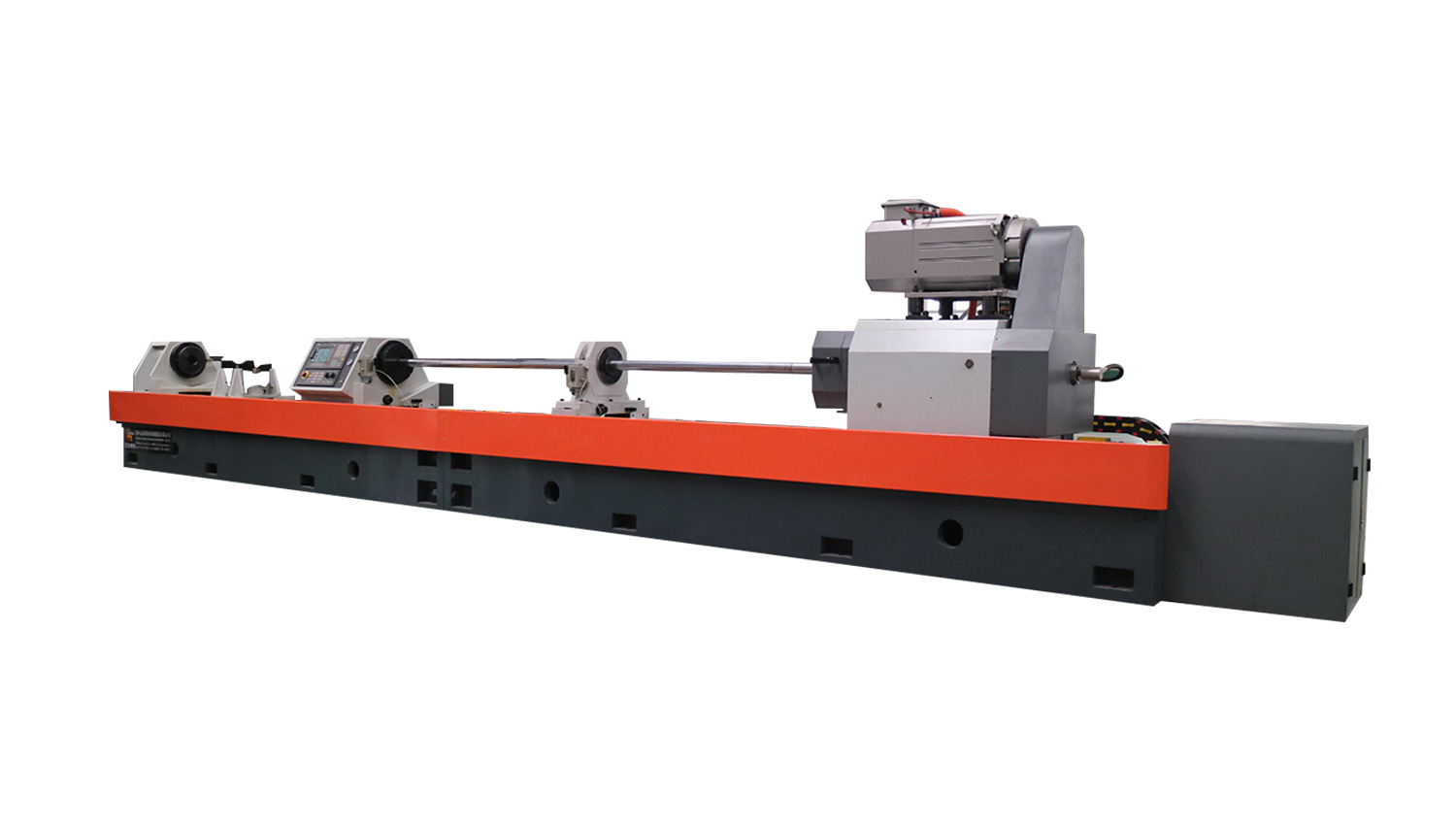

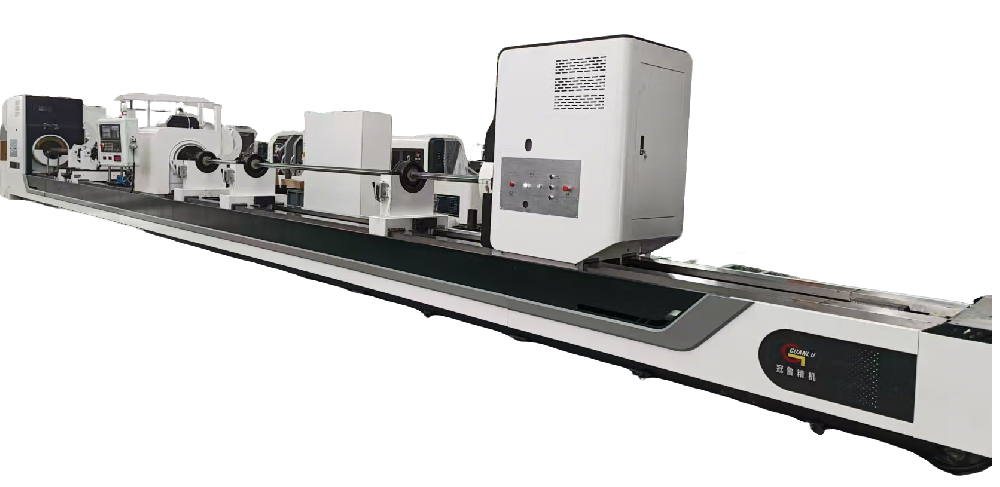

■TGK series CNC deep hole skiving roller burnishing machine is suitable for boring, scraping, rolling and combination processing of various hydraulic cylinders, cylinders and other precision pipe fittings.
■The processing aperture accuracy can reach IT8~IT10, and the surface roughness can reach Ra0.2-0.4μm after rolling.
■The deep hole skiving roller burnishing mahine is specially for hydrualic cyinder industry.
Specification | Parameters | Note |
Boring diameter range | Φ38～Φ250mm/40mm-350mm 40mm-500mm | |
Boring depth range | 1000mm/2000mm/3000mm/4000mm/5000mm | |
Machine guide rail width | 600mm | |
Infeed speed range | 10-3000mm/min | Stepless |
Boring box main motor | 30kw | MK motor |
Spindle rotary speed range and grades | 60-1000r/min | 2 gears stepless |
Infeed motor | 3kw | AC servo motor |

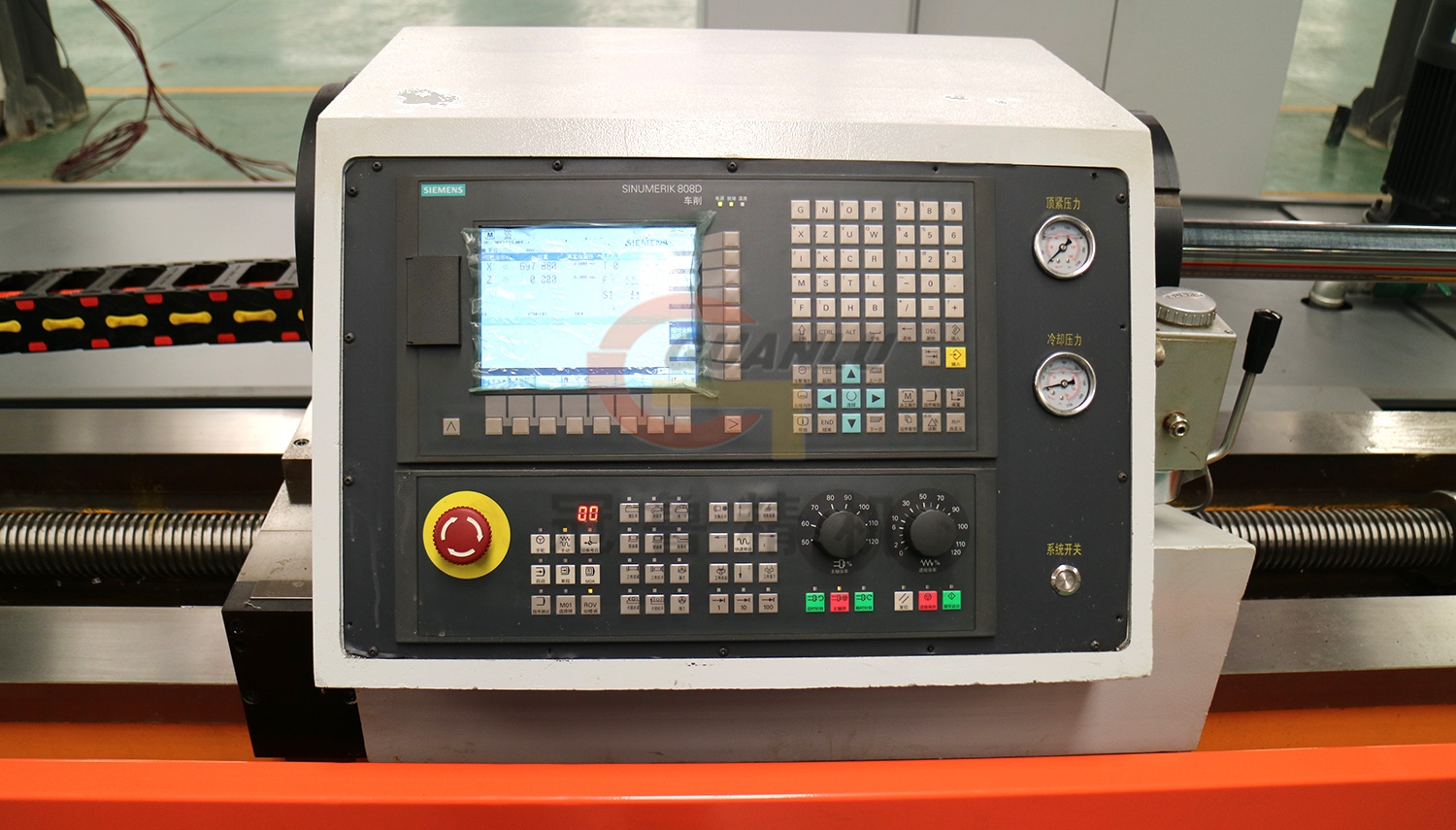

CNC system | Siemens S7 PLC system | |
Cooling system rated power | 2.5MPa | |
Cooling system flow range | 200-600L/min | |
Hydraulic system rated working pressure | 6.3MPa | |
Automatic tooling expansion system rated working pressure | 3MPa | |
