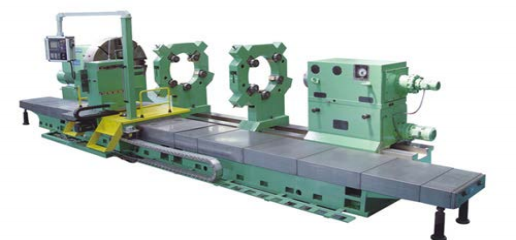

CK611F series heavy duty horizontal lathe machine fully absorbs the international advanced technology, adopts the international advanced design means and manufacturing technology, such as three-dimensional modeling, simulation design, finite element analysis, etc., and carries out modular configuration for the products. It is a meticulously designed electromechanical machine that integrates multi-disciplinary and multi category precision manufacturing technologies such as electrical, automatic control, hydraulic control and modern mechanical design.

This series of machine has excellent structural performance, has the feactures of high dynamic and static rigidity, long service life, high working efficiency, safe and reliable functions, convenient operation and beautiful appearance.



1.The spindle of headstock adopt through-type structure,which is supported by high-precision double row cylindrical roller bearing, with high precision and good stability .

2. The spindle transmission is driven by AC spindle motor or DC motor,mechanical two-gears, speed stepless within gear, with wide speed range , good adaptability .

3. The machine bed adopts an integral three guide rail or integral four guide rail ,ground precisely,the surface of main guide rail is subject to medium frequency quenching treatment, hardness up to HRC50 .

4. The tailstock adopts upper and lower split structure,the mandrel inside of sleeve adopts high precision double row short cylindrical roller bearing with adjustable radial clearance ; The movement of sleeve and tailstock are motorized and equipped with a force measuring device.

5.The horizontal movements of tool turret adopts ball screw and high-precision rack and double tooth rod clearance-elimination structure is adopted for longitudinal movement, which improves the transmission accuracy of the tool turret .

6. The machine is equipped with walking platform and suspension type

button station , convenient for operation .

7.The quantity of open-type and closed-type center rest can be

Equipped according to customer’s requirements.

8.This machine is equipped with SIEMENS 828D CNC system ,other brand CNC system is optional .

9.Double tool turret, milling and boring device,grinding device,chips conveyor, cutter cooling system etc. can be equipped according to customer’s requirements .

The CNC heavy duty lathe could have drilling,milling,boring,grinding function. If need,please notice.


Specification

Model

CK61125F

CK61160F

CK61200F

CK61250F

Max. Swing diameter over machine bed

1250mm

1600mm

2000mm

2500mm

Max. Swing diameter over tool turret

1000mm

1250mm

1600mm

2000mm

Max. Workpiece length between two centers

4-20mm

Max. loading weight of two centers

40t

Machine bed guide rail form

integral three guide rail or integral four guide rail

Machine bed guide rail width

1615mm

1615mm

1850mm

2050mm

Faceplate diameter

1250mm

1600mm

1600mm

2000mm

Spindle rotary speed range

0.8-160r/Min

Spindle gear quantity

Mechanical two-gears, stepless

Tailstock sleeve stroke

300mm

Tool turret type

Frame-type tool turret/Vertical four-station electric tool turret/ Vertical four-station manual tool turret

Tool turret feeding rate

0.1-1000mm/Min

Tool turret rapid feed speed

4000mm/Min

Tool turret feeding speed

Stepless

Main motor power

75kW/90kW

CNC system

SIEMENS 828D  or other brand
